Understanding the direction of electric field is fundamental to grasping the behavior of electric charges and their interactions. The electric field is a vector field that surrounds electrically charged particles and exerts force on other charges within the field. This concept is crucial in various applications, from designing electronic circuits to understanding natural phenomena like lightning.
What is an Electric Field?
The electric field is a region of space where an electric charge experiences a force. It is defined as the force per unit charge that a test charge would experience if placed at a point in the field. The electric field is represented by the symbol E and is measured in volts per meter (V/m).
Calculating the Direction of Electric Field

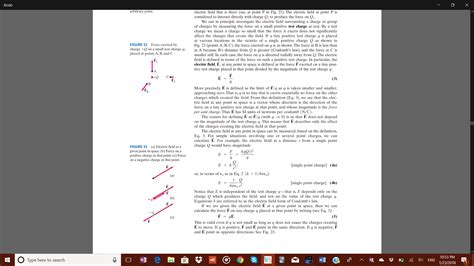

The direction of electric field can be determined using Coulomb’s law and the principle of superposition. For a single point charge, the electric field points radially outward if the charge is positive and radially inward if the charge is negative. The magnitude of the electric field E at a distance r from a point charge q is given by:
E = k * |q| / r^2
where k is Coulomb’s constant (approximately 8.99 × 10^9 N m^2/C^2).
Electric Field Due to Multiple Charges
When multiple charges are present, the total electric field at a point is the vector sum of the electric fields due to each individual charge. This is known as the principle of superposition. The electric field E at a point due to multiple charges can be calculated as:
E = E1 + E2 + E3 + …
where E1, E2, E3, … are the electric fields due to individual charges.
Electric Field Lines

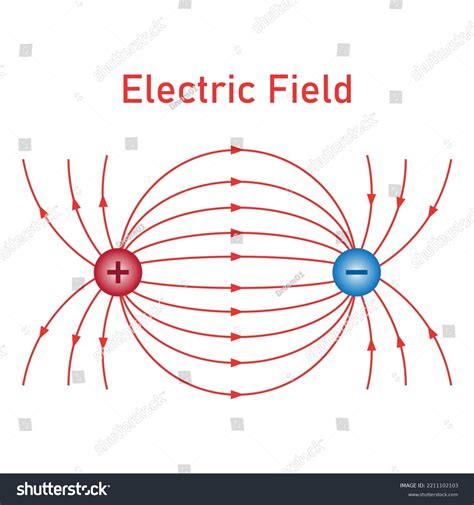

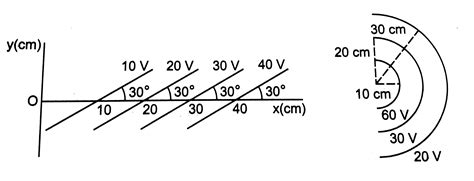

Electric field lines are a visual representation of the electric field. They provide a way to understand the direction of electric field and its strength. Key properties of electric field lines include:
- Electric field lines originate from positive charges and terminate on negative charges.
- The number of lines per unit area is proportional to the strength of the electric field.
- Electric field lines never intersect.
- Electric field lines are perpendicular to the surface of a conductor.
Electric Field Inside and Outside a Conductor
Inside a conductor in electrostatic equilibrium, the electric field is zero. This is because any electric field would cause the free charges in the conductor to move, contradicting the assumption of equilibrium. Outside a conductor, the electric field is perpendicular to the surface and depends on the charge distribution.
Electric Field Due to a Dipole
An electric dipole consists of two equal and opposite charges separated by a small distance. The electric field due to a dipole can be calculated using the dipole moment p, which is the product of the charge q and the distance d between the charges (p = q * d). The electric field E at a point on the axis of the dipole is given by:
E = 2k * p / r^3
where r is the distance from the center of the dipole to the point.
Electric Field Due to a Continuous Charge Distribution
For a continuous charge distribution, the electric field can be calculated using integration. The electric field E at a point due to a continuous charge distribution is given by:
E = ∫ (k * dq / r^2) * r̂
where dq is an infinitesimal charge element, r is the distance from the charge element to the point, and r̂ is the unit vector in the direction from the charge element to the point.
Electric Field in a Dielectric Medium

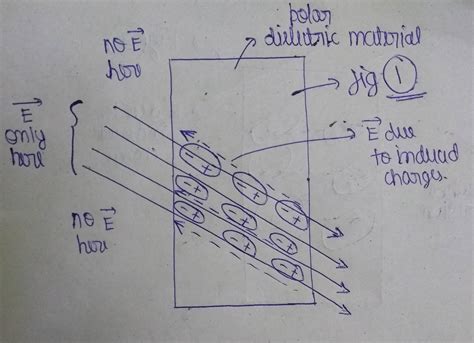

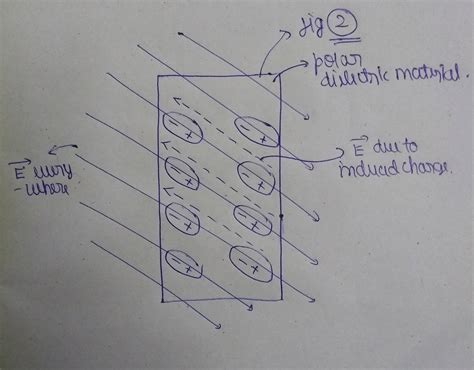

In a dielectric medium, the electric field is reduced by a factor known as the dielectric constant ε. The electric field E in a dielectric medium is given by:
E = E0 / ε
where E0 is the electric field in vacuum.
Applications of Electric Field
The concept of the direction of electric field has numerous applications in various fields, including:
- Electronics: Understanding the electric field is crucial for designing and analyzing electronic circuits and components.
- Physics: The electric field is fundamental to studying electromagnetism, particle physics, and other areas of physics.
- Engineering: Electric fields are used in the design of electrical machines, power systems, and communication systems.
- Medicine: Electric fields are used in medical imaging techniques such as electroencephalography (EEG) and magnetoencephalography (MEG).
Examples of Electric Field Calculations
Let’s consider a few examples to illustrate the calculation of the direction of electric field.
Example 1: Electric Field Due to a Point Charge
Calculate the electric field at a distance of 0.5 meters from a point charge of +2 μC.
Given:
- Charge q = +2 μC = 2 × 10^-6 C
- Distance r = 0.5 m
- Coulomb’s constant k = 8.99 × 10^9 N m^2/C^2
Using the formula E = k * |q| / r^2:
E = (8.99 × 10^9 N m^2/C^2) * (2 × 10^-6 C) / (0.5 m)^2
E = 7.192 × 10^4 N/C
The direction of electric field is radially outward from the positive charge.
Example 2: Electric Field Due to a Dipole
Calculate the electric field at a distance of 1 meter from the center of a dipole with a dipole moment of 10^-29 C·m.
Given:
- Dipole moment p = 10^-29 C·m
- Distance r = 1 m
- Coulomb’s constant k = 8.99 × 10^9 N m^2/C^2
Using the formula E = 2k * p / r^3:
E = 2 * (8.99 × 10^9 N m^2/C^2) * (10^-29 C·m) / (1 m)^3
E = 1.798 × 10^-19 N/C
The direction of electric field depends on the orientation of the dipole.
Example 3: Electric Field Due to a Continuous Charge Distribution
Calculate the electric field at a distance of 0.5 meters from a uniformly charged ring of radius 0.2 meters and total charge 1 μC.
Given:
- Total charge Q = 1 μC = 1 × 10^-6 C
- Radius of the ring R = 0.2 m
- Distance from the center of the ring r = 0.5 m
- Coulomb’s constant k = 8.99 × 10^9 N m^2/C^2
The electric field at a point on the axis of the ring can be calculated using integration. However, for simplicity, we can use the result for a uniformly charged ring:
E = k * Q * r / (r^2 + R^2)^(3⁄2)
E = (8.99 × 10^9 N m^2/C^2) * (1 × 10^-6 C) * 0.5 m / (0.5 m^2 + 0.2 m^2)^(3⁄2)
E = 1.124 × 10^4 N/C
The direction of electric field is along the axis of the ring, pointing away from the ring if the charge is positive.
💡 Note: The examples provided are simplified calculations. In real-world scenarios, the electric field may be more complex and require numerical methods or computer simulations for accurate determination.
Electric field calculations are essential for understanding the behavior of electric charges and their interactions. By mastering the concepts and techniques discussed in this post, you can gain a deeper understanding of the direction of electric field and its applications in various fields.
In summary, the electric field is a fundamental concept in physics and engineering, with wide-ranging applications. Understanding the direction of electric field is crucial for designing and analyzing electrical systems, from simple circuits to complex electronic devices. By applying the principles of Coulomb’s law, superposition, and integration, you can calculate the electric field in various scenarios and gain insights into the behavior of electric charges. Whether you are a student, engineer, or researcher, a solid understanding of the electric field is essential for success in your field.
