The study of materials science often involves understanding the behavior of different elements and their alloys under various conditions. One of the most fundamental tools in this field is the Ironcarbon Phase Diagram. This diagram is crucial for metallurgists and engineers as it provides insights into the phases and transformations that occur in iron-carbon alloys, which are the basis for many types of steel and cast iron.
The Basics of the Ironcarbon Phase Diagram
The Ironcarbon Phase Diagram is a graphical representation that shows the phases present in iron-carbon alloys at different temperatures and carbon concentrations. It is essential for understanding the heat treatment processes that can alter the properties of steel and cast iron. The diagram typically includes the following key components:
- Phases: The different states of matter that the alloy can exist in, such as austenite, ferrite, cementite, and pearlite.
- Temperature: The range of temperatures at which the alloy is studied, usually from room temperature to the melting point.
- Carbon Content: The percentage of carbon in the alloy, which can range from pure iron (0% carbon) to high-carbon steels and cast irons.
Key Phases in the Ironcarbon Phase Diagram
The Ironcarbon Phase Diagram identifies several key phases that are important for understanding the behavior of iron-carbon alloys:
- Austenite (γ-Fe): A face-centered cubic (FCC) structure that is stable at high temperatures. It can dissolve up to 2.11% carbon at 1147°C.
- Ferrite (α-Fe): A body-centered cubic (BCC) structure that is stable at lower temperatures and can dissolve very little carbon (up to 0.022% at 727°C).
- Cementite (Fe3C): A compound of iron and carbon with an orthorhombic crystal structure. It is very hard and brittle.
- Pearlite: A lamellar structure consisting of alternating layers of ferrite and cementite. It forms when austenite decomposes during slow cooling.
- Martensite: A metastable phase formed by the rapid cooling (quenching) of austenite. It has a body-centered tetragonal (BCT) structure and is very hard and strong.
- Ferrite Region: Below the eutectoid temperature (727°C) and with low carbon content, the alloy consists primarily of ferrite.
- Austenite Region: Above the eutectoid temperature and with carbon content up to 2.11%, the alloy is in the austenite phase.
- Pearlite Region: Below the eutectoid temperature and with carbon content between 0.022% and 0.77%, the alloy consists of pearlite.
- Cementite Region: Above the eutectoid temperature and with carbon content above 2.11%, the alloy consists of cementite.
- Eutectoid Reaction: Occurs at 727°C and 0.77% carbon. Austenite decomposes into pearlite (a mixture of ferrite and cementite).
- Eutectic Reaction: Occurs at 1147°C and 4.3% carbon. Liquid iron-carbon alloy decomposes into austenite and cementite.
- Annealing: Heating the alloy to a high temperature and then slowly cooling it to relieve internal stresses and soften the material.
- Normalizing: Heating the alloy to a temperature above the austenite range and then cooling it in still air to refine the grain structure.
- Quenching: Rapidly cooling the alloy from the austenite range to form martensite, which increases hardness and strength.
- Tempering: Heating the quenched alloy to a temperature below the austenite range to reduce brittleness and improve toughness.
- Designing alloys with specific properties for various applications, such as structural steels, tool steels, and cast irons.
- Optimizing heat treatment processes to achieve desired mechanical properties, such as hardness, strength, and toughness.
- Understanding the behavior of iron-carbon alloys under different conditions, such as temperature and carbon content.
- Predicting phase transformations and microstructural changes during processing and service.
- Identify the phases present at different temperatures and carbon contents.
- Determine the eutectoid and eutectic temperatures and carbon contents.
- Understand the phase transformations that occur during heating and cooling.
- Use the diagram to design heat treatment processes and predict the resulting microstructures.
Important Regions in the Ironcarbon Phase Diagram
The Ironcarbon Phase Diagram can be divided into several important regions based on the phases present:
Eutectoid and Eutectic Reactions
The Ironcarbon Phase Diagram includes two critical reactions: the eutectoid and eutectic reactions. These reactions are essential for understanding the phase transformations in iron-carbon alloys:
Heat Treatment Processes
The Ironcarbon Phase Diagram is invaluable for designing heat treatment processes that can alter the properties of steel and cast iron. Some common heat treatment processes include:
🔍 Note: The specific temperatures and carbon contents for these processes can be determined using the Ironcarbon Phase Diagram.
Applications of the Ironcarbon Phase Diagram
The Ironcarbon Phase Diagram has numerous applications in metallurgy and materials science. Some of the key applications include:
Interpreting the Ironcarbon Phase Diagram
To effectively use the Ironcarbon Phase Diagram, it is essential to understand how to interpret the various regions and lines on the diagram. Here are some key points to consider:
For example, consider an alloy with 0.4% carbon. At room temperature, the alloy will consist of pearlite. If the alloy is heated to 750°C, it will transform into austenite. Upon rapid cooling (quenching), the austenite will transform into martensite. If the alloy is slowly cooled, it will transform back into pearlite.

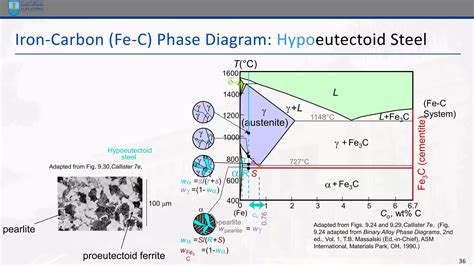

Example of the Ironcarbon Phase Diagram

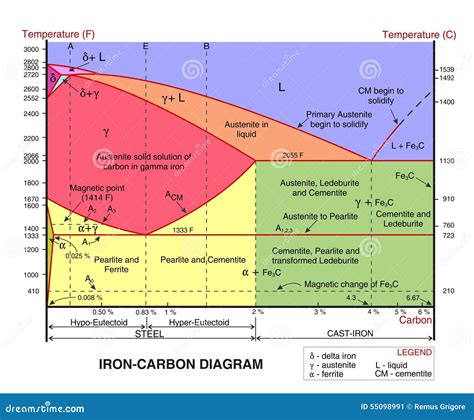

Below is a simplified representation of the Ironcarbon Phase Diagram. This diagram shows the phases present at different temperatures and carbon contents.
| Temperature (°C) | Phases |
|---|---|
| Room Temperature | Ferrite + Cementite (Pearlite) |
| 727°C | Austenite |
| 1147°C | Liquid + Austenite |
| 1495°C | Liquid |
This table provides a basic overview of the phases present at different temperatures. For a more detailed analysis, refer to a complete Ironcarbon Phase Diagram.
📊 Note: The actual diagram is more complex and includes additional phases and transformations. This table is a simplified representation for illustrative purposes.
Understanding the Ironcarbon Phase Diagram is crucial for metallurgists and engineers working with iron-carbon alloys. By interpreting the diagram, they can design alloys with specific properties, optimize heat treatment processes, and predict phase transformations. This knowledge is essential for developing high-performance materials for various applications, from structural steels to tool steels and cast irons.
In summary, the Ironcarbon Phase Diagram is a fundamental tool in materials science that provides valuable insights into the behavior of iron-carbon alloys. By understanding the phases, transformations, and heat treatment processes, engineers and metallurgists can develop materials with tailored properties for specific applications. The diagram’s applications range from designing alloys to optimizing heat treatment processes, making it an indispensable resource in the field of metallurgy.
